管道内壁侵蚀监测

基本原理

	Install the optical fiber module in spiral pattern and collect data.

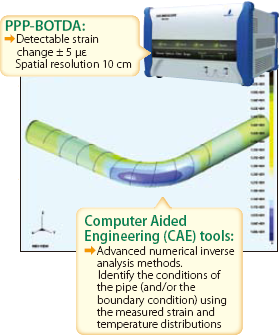

	Pulse Pre-Pump Brillouin Optical Time Domain (PPP-BOTDA) measures the surface strain. Using measured data the Inverse Analysis is capable of quantitatively calculating the conditions of piping (deformation / temperature / thinning)

We developed the industry leading optical fiber module.
	Heat-resistant up to 300 ℃ Installable on rough surfaces (against for micro-bending)

	Once installed, the fiber enables a long-term monitoring.
		*In compliance with the original quality standards for implementation proved by laboratory and verification test, practical installation is carried out.


	Consulting services, from fiber installation planning to data management, enable you to improve plant monitoring system. In return, they ensure the safety and reliability, and improve profitability of plant assets.
